Periodontal Dental Instruments

ED-025-280
Gracey #1-2 Short contra-angle for incisors and cuspids.
Description:
衛部醫器輸壹字第023236號

ED-025-281
Gracey #3-4 Short contra-angle for incisors and cuspids.
Description:
衛部醫器輸壹字第023236號

ED-025-282
Gracey #5-6 Medium shank and slight contra-angle for bicuspids and molars.
Description:
衛部醫器輸壹字第023236號

ED-025-283
Gracey #7-8 Medium contra-angle for facial and lingual surfaces of bicuspids and molars.
Description:
衛部醫器輸壹字第023236號

ED-025-284
Gracey #9-10 Long contra-angle for molars and less accessible root surfaces.
Description:
衛部醫器輸壹字第023236號

ED-025-285
Gracey #11-12 All mesial surfaces of bicuspids and molars.
Description:
衛部醫器輸壹字第023236號

ED-025-285A
Gracey #13-14 All distal surfaces of bicuspids and molars.
Description:
衛部醫器輸壹字第023236號

ED-025-286
Gracey #15-16 Modified version of the Gracey 11-12 allows better access and a more comfortable hand and
finger position for all mesial surfaces of bicuspids and molars.
Description:
衛部醫器輸壹字第023236號

ED-025-286A
Gracey #17-18 Modified version of the Gracey 13-14 allows better access and a more comfortable hand and
finger position for all distal surfaces of bicuspids and molars.
Description:
衛部醫器輸壹字第023236號
Curettes – Columbia

ED-025-265
terminal shank: 1.1mm in dia, 12mm long
blade width: 1.2mm
Description:
衛部醫器輸壹字第023236號

ED-025-266
terminal shank: 1.2mm in dia, 14mm long
blade width: 1.2mm
Description:
衛部醫器輸壹字第023236號

ED-025-267
terminal shank: 1mm in dia, 8mm long
blade width: 0.9mm
Description:
衛部醫器輸壹字第023236號
Curettes – Langer

ED-025-270
bends similar to the Gracey 11-12,
terminal shank: 1mm in dia, 9mm long, blade width: 0.9mm
Description:
衛部醫器輸壹字第023236號

ED-025-271
bends similar to the Gracey 13-14,
terminal shank: 1mm in dia, 9mm long, blade width: 0.9mm
Description:
衛部醫器輸壹字第023236號

ED-025-271A
bends similar to the Gracey 7-8,
terminal shank: 1mm in dia, 16mm long, blade width: 0.9mm
Description:
衛部醫器輸壹字第023236號
Curettes – Barnhart

ED-025-272
terminal shank: 1mm in dia, 16mm long
blade width: 0.8mm
Description:
衛部醫器輸壹字第023236號

ED-025-272A
Modified Barnhart 5-6 with slender blades,
10mm long,
blade width: 0.7mm
Description:
衛部醫器輸壹字第023236號

ED-025-273
terminal shank: 1mm in dia, 10mm long
blade width: 0.8mm
Description:
衛部醫器輸壹字第023236號

ED-025-273A
Modified Barnhart 5-6 with a rigid terminal shank,
terminal shank: 1.2mm in dia, 10mm long,
blade width: 0.9mm
Description:
衛部醫器輸壹字第023236號
Curettes -McCall

ED-025-298
terminal shank: 1.1mm in dia, 9mm long.
elliptical blade shape with a rounded toe 1.2mm wide
Description:
衛部醫器輸壹字第023236號

ED-025-299
terminal shank: 1.1mm in dia, 9mm long.
pointed blade shape 1mm wide
Description:
衛部醫器輸壹字第023236號

ED-025-300
shank curvature adapts easily to 2nd and 3rd molars.
elliptical blade shape has a rounded toe 1.2mm wide
Description:
衛部醫器輸壹字第023236號

ED-025-300A
shank curvature adapts easily to 2nd and 3rd molars,
straight-sided universal blade has a rounded toe 0.9mm wide
Description:
衛部醫器輸壹字第023236號
Scalers – Anterior & Posterior

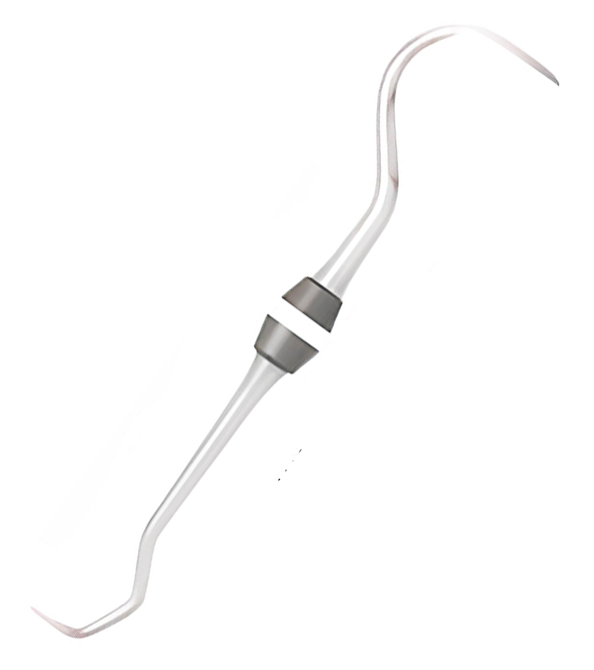

ED-025-307
U15-33 Towner Jacquette
Straight blade Jacquette that has a 0.9mm blade width
Towner U15 Sickle that has a blade width of 1.0mm
Description:
衛部醫器輸壹字第023236號

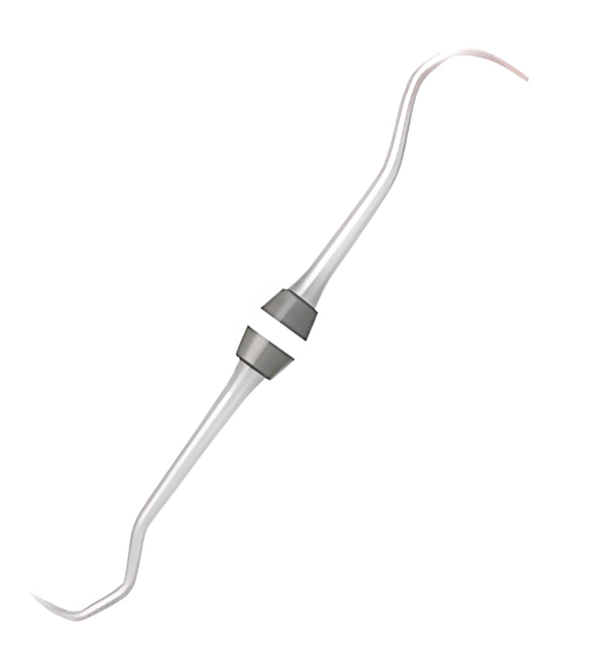

ED-025-309
H5-33 Jacquette Sickle N5
Straight blade Jacquette that has a 0.9mm blade width
N5 Sickle that has a blade width of 0.9mm
Description:
衛部醫器輸壹字第023236號

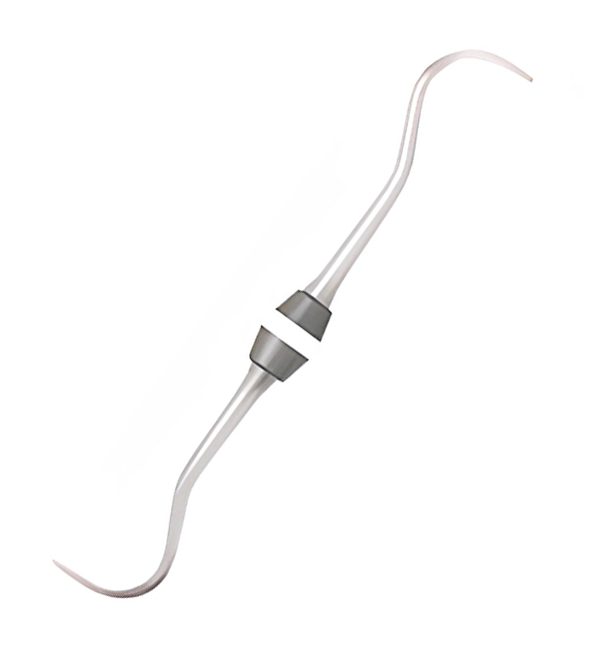

ED-025-310
H6-H7 Offset Sickle
blade width: 0.9mm, tips with 10° mirror image offset
to allow better access to anteriors and premolars
Description:
衛部醫器輸壹字第023236號

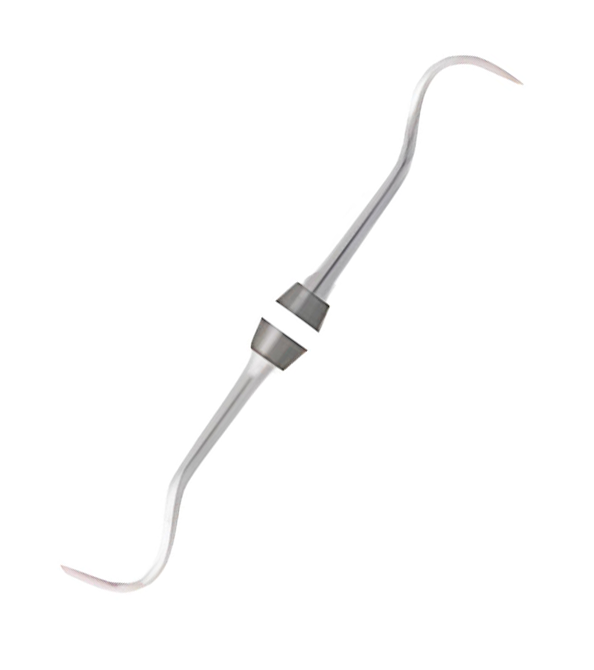

ED-025-310A
R138 Offset Sickle
blade width: 0.8mm, tips with 20° mirror image offset
to allow better access to anteriors and premolars
Description:
衛部醫器輸壹字第023236號

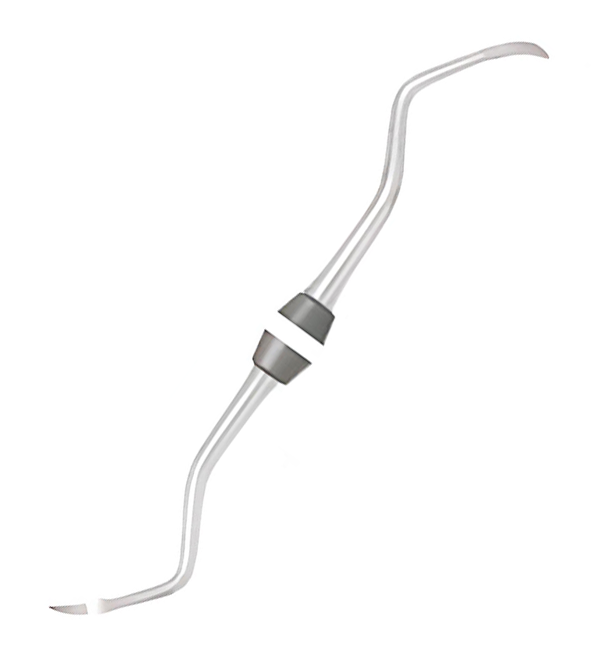

ED-025-311
Taylor # 2-3
Mirror image blades that tapper to a point from a 1.5mm width.
The terminal shank reach is 11mm and is set at 40° to the handle.
Description:
衛部醫器輸壹字第023236號

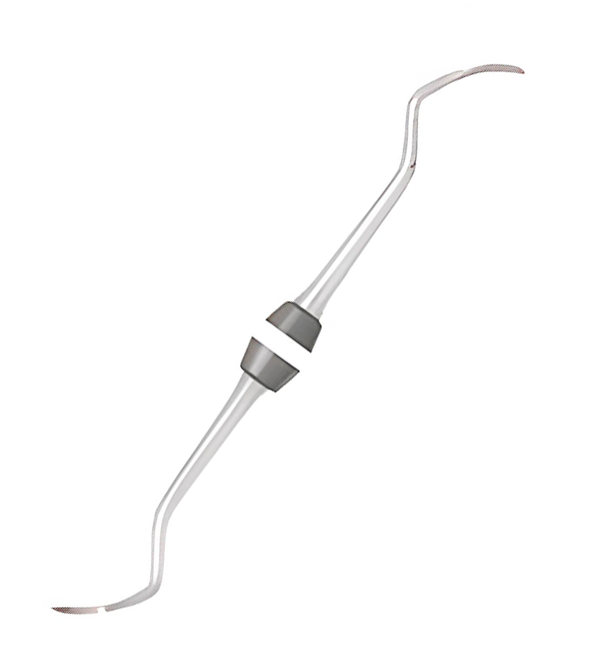

ED-025-313
Sickle #204S
Mirror image blades on a short-reach terminal shank
that is set at 40″ to the handle. The blade have
a reach of 4.5mm and a width of 0.9mm
Description:
衛部醫器輸壹字第023236號

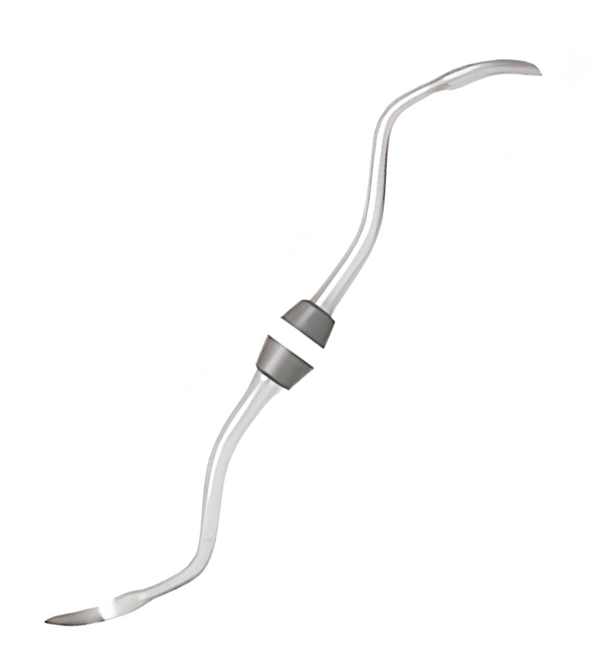

ED-025-315
Crane Kaplan #6
Mirror image blades that tapper to a point from a 2.0mm width.
The terminal shank is set at 35° to the handle with a reach of 15mm.
Description:
衛部醫器輸壹字第023236號
